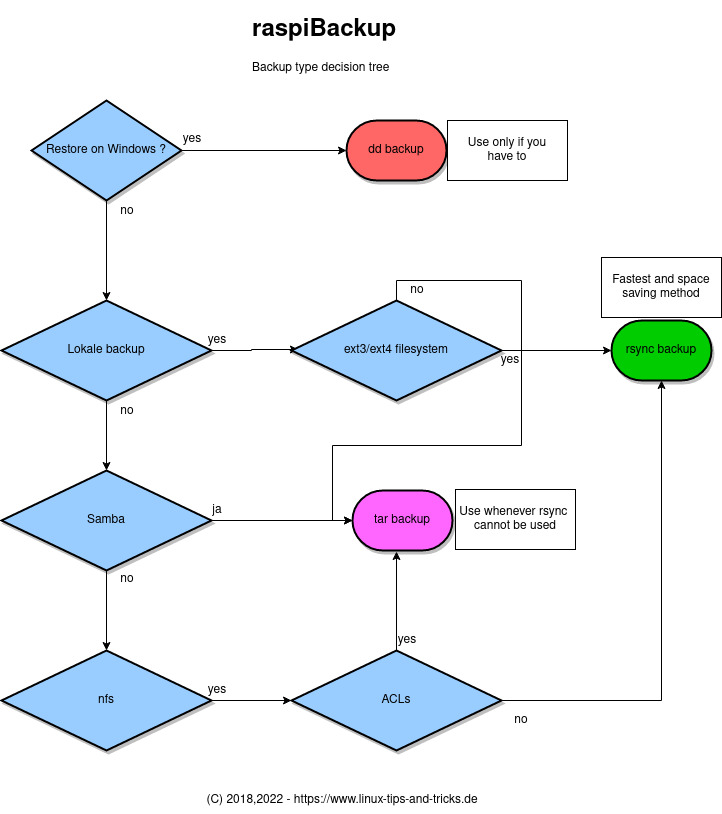

Decision tree for backup types
There are different backup types and each has its advantages and disadvantages.
Different backup types can be combined. For example, a full backup can be created with tar every
month and a weekly rsync delta backup in between.
However, this requires manual configuration of Systemd timers and requires
good Systemd knowledge. The raspiBackupInstaller configures exactly one backup type only.
All backup types can be completely restored with raspiBackup. A dd backup can also be restored under Windows.
A dd backup creates a consistent binary image of the system.
The entire device with the system is always read and backed up. This means that
data that has not changed is also backed up. It also means
that the restore device has to be at least as large as the original system for the restore.
No partition is resized. This repeatedly causes problems, especially
with SD cards, as the SD cards - although 32GB in size, for example - always have slight
differences and therefore a restore of a 32GB system to another 32GB SD card
can fail because the SD card is slightly smaller.
But it is not recommended to use the backup type dd.
The reasons are explained in detail in Why is it better not to use dd as a backup type?.
A ddz backup, like a dd backup, backs up the entire system. This method
puts a heavy load on the CPU as the amount of data is reduced. (It is a dd backup
with zipping switched on with -z). A restore with Windows tools is not possible.
A tar backup backs up all the data stored on the system device, although the backup is
not as large as a dd backup, as only the data that actually exists is backed up.
Therefore, a tar backup can also be restored on devices
that are smaller than the original device. Of course, only if all
backed-up data fits on the new device.
A tgz backup backs up the entire system, like a tar backup. This method
puts a heavy load on the CPU as the amount of data is reduced. (It is a tar backup
with zipping switched on with -z.)
An rsync backup only saves the data that has changed since the last backup, except for the first time.
The hardlinks of the ext3/ext4 file system
ensure that the backup is still consistent.
However, the data is not compressed. This in turn has the
advantage that you can easily retrieve individual files from the backup by just copying them.
This method is very fast if an
initial backup has already been created.
| Type | Full backup | Backup time | Backup size | Data compression | CPU loaded | Card loaded | Selective restore possible | File system |
|---|---|---|---|---|---|---|---|---|
| dd | yes | long | large | no | medium | high | no | all, fat32 only up to 4GB |
| ddz | yes | long | smaller | yes | yes | high | no | all, fat32 only up to 4GB |
| tar | yes | medium | medium | no | no | medium | yes | all, fat32 only up to 4GB |
| tgz | yes | medium | medium | yes | yes | medium | yes | all, fat32 only up to 4GB |
| rsync | no | short with hardlinks | small with hardlinks | no | no | hardly | yes | ext3/ext4 |
Note
Take the advantages and disadvantages of the possible file systems into account.
